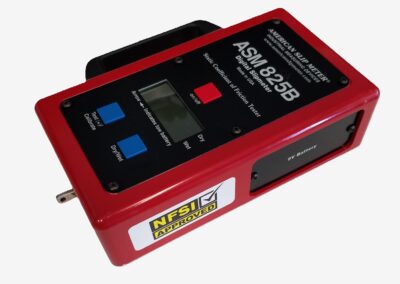

NFSI APPROVED Static Coefficient of Friction Tester

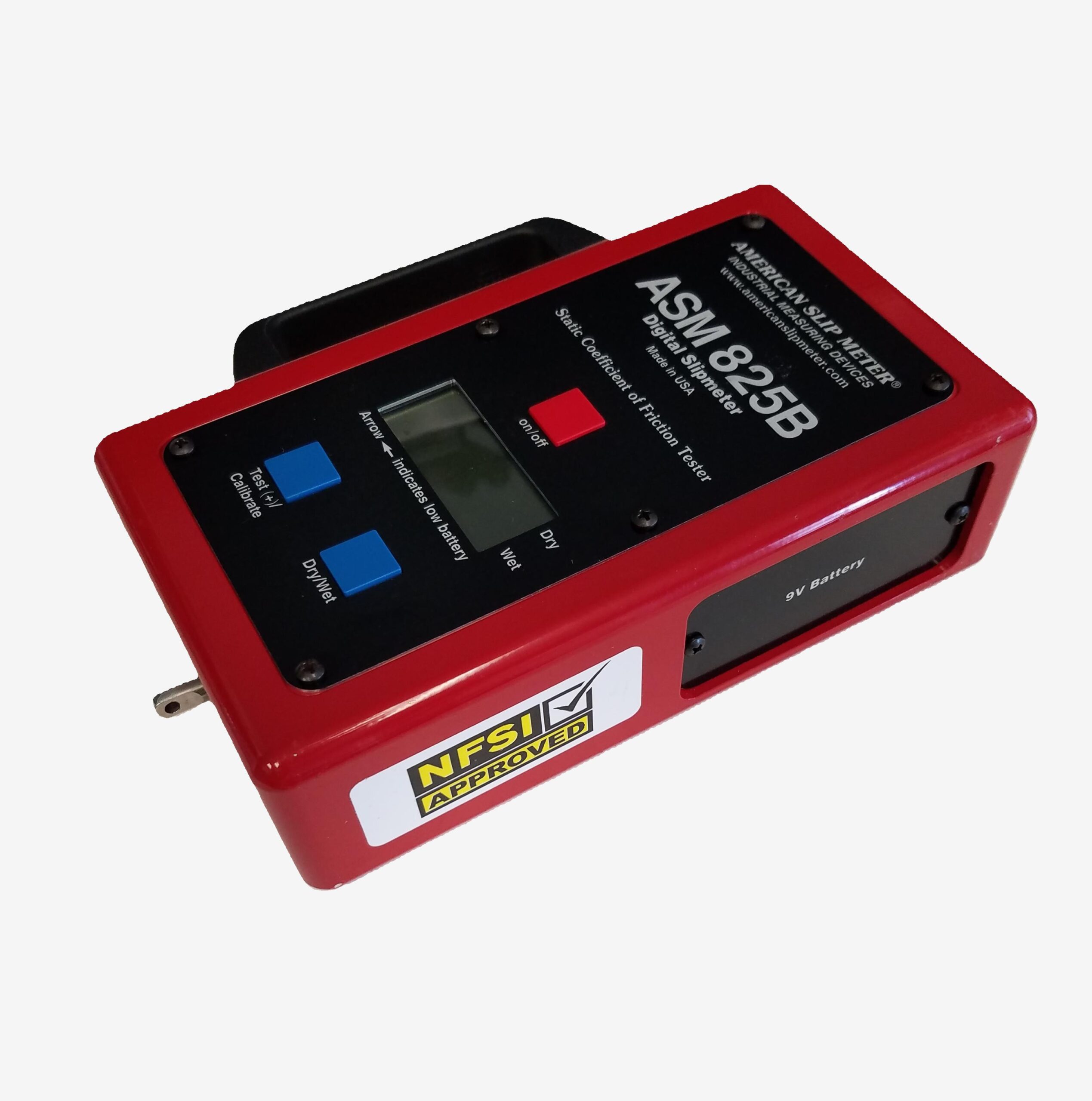

825B SCOF Tribometer Kit
Our 825B meter is an evolution of the 825A model. As the NFSI B101.1 standard has evolved, our drag sled SCOF device has as well. Our meter has changed with the times and will continue to do so to always be reaching for the goal of being the best SCOF meter on the market. Our ever increasing customer base worldwide indicates that SCOF testing is not going away.
The 825B tests to the NFSI B101.1-2022 and as an equivalent to the James machine for ASTM D2047-11 for dry testing.The meter is shipped as a complete kit with all accessories included. It is also shipped as one of the meters of the combo DCOF and SCOF kit.
$1299.00
Easy To Calibrate, Easy to Use
Simple to follow instructions. Perform test in seconds. Designed for ease of operation and handling. Lightweight, complete kit is less than 8 lbs.
Reliable
Two year full manufacture warranty. Precision machined base and parts. Protective powder coat finish. Gage manufactured to plus/minus 1% accuracy. Tested and calibrated prior to shipping.
Operation

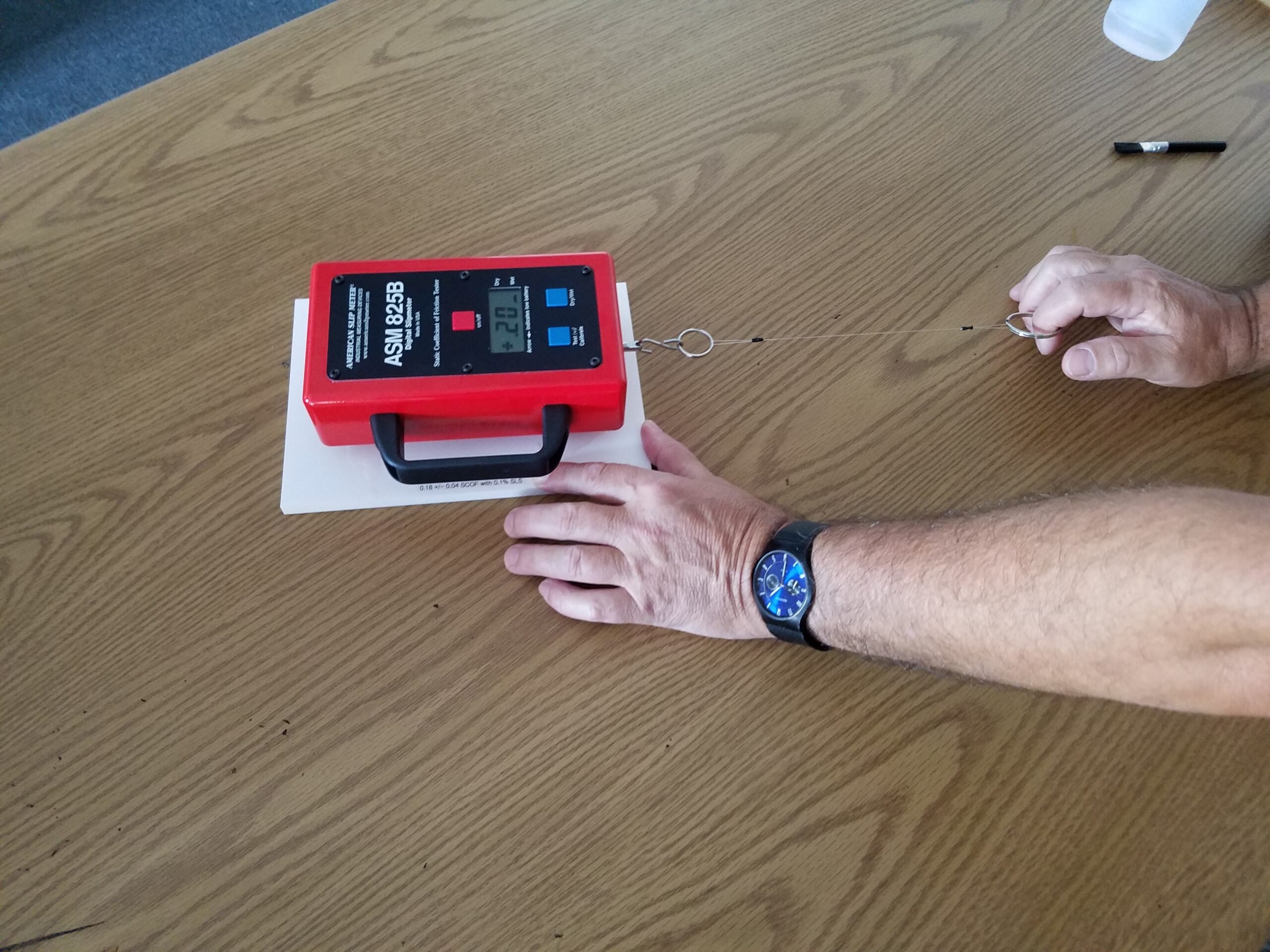

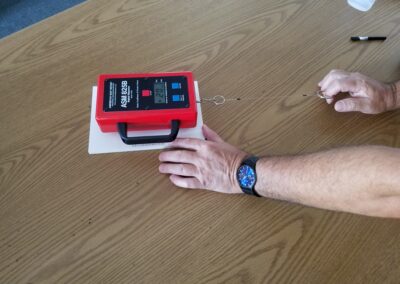

It is very simple to operate as you can see from the video (basic operation is the same as the 825A). There is a reference surface to verify the unit prior to use along with a calibration weight if needed. When testing the dwell time that the meter sits on the surface prior to applying force should be kept to a minimal amount of time. One way is to lift up on the handle so the meter is just touching on the edge of 2 of the feet verses sitting flat, then just as you are ready to apply pressure, let the meter down, apply pressure to the meter by curling your finger in towards the palm of your hand while watching the front of the meter for forward movement, once the meter moves the static test is complete. Check the display for the results.
Reference Test Tile
Calibration
The meters are calibrated to the NFSI LT (low traction) and HT (high traction) test tiles.
Results from NFSI ILS
Results are taken after following the
operating instructions for proper preparation and testing procedures.
Kit Specifications

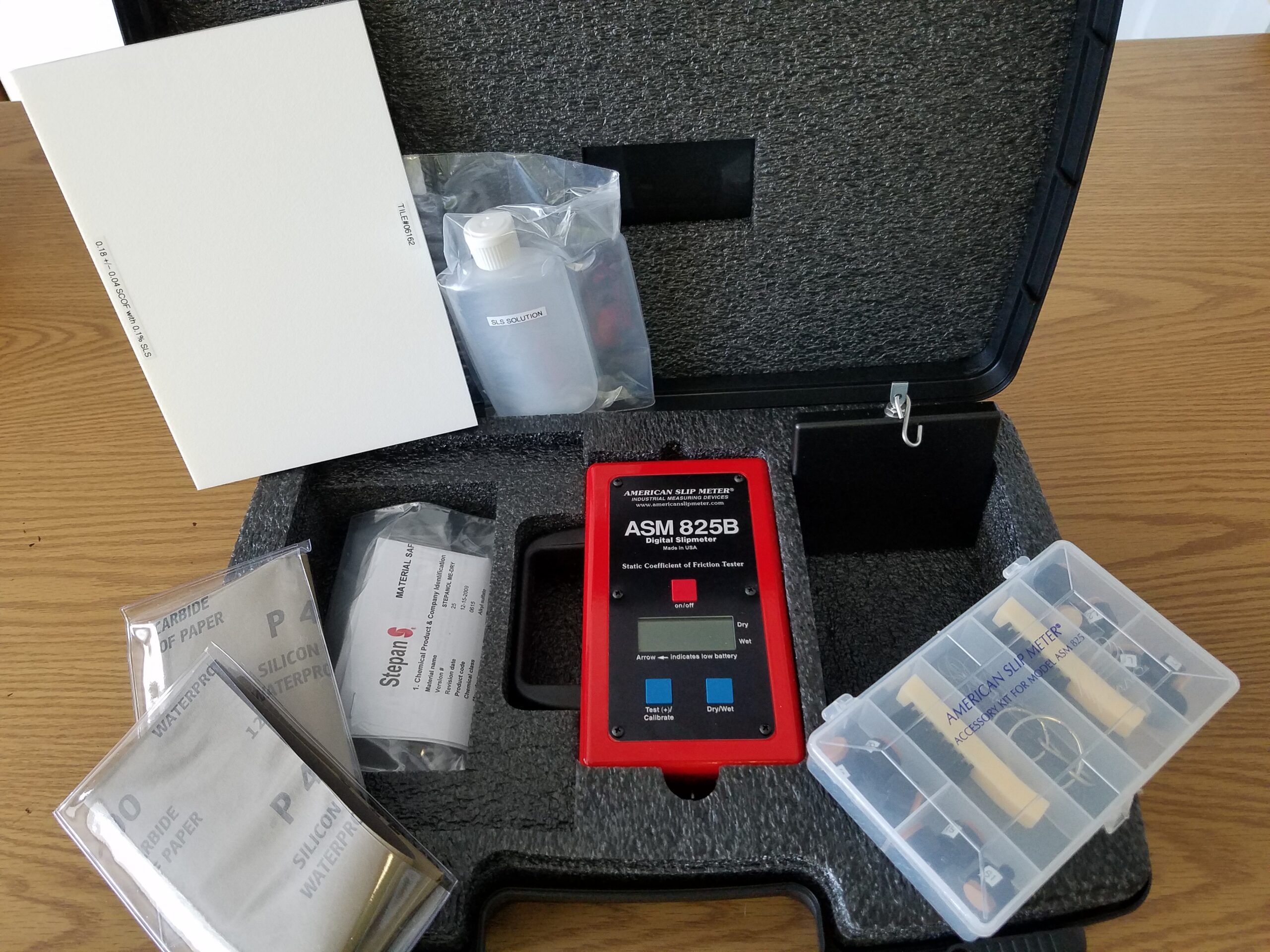

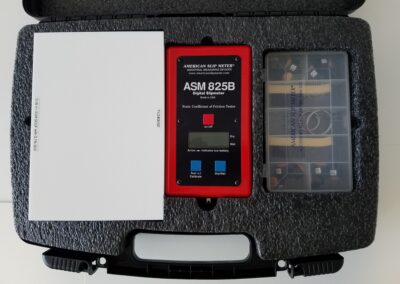

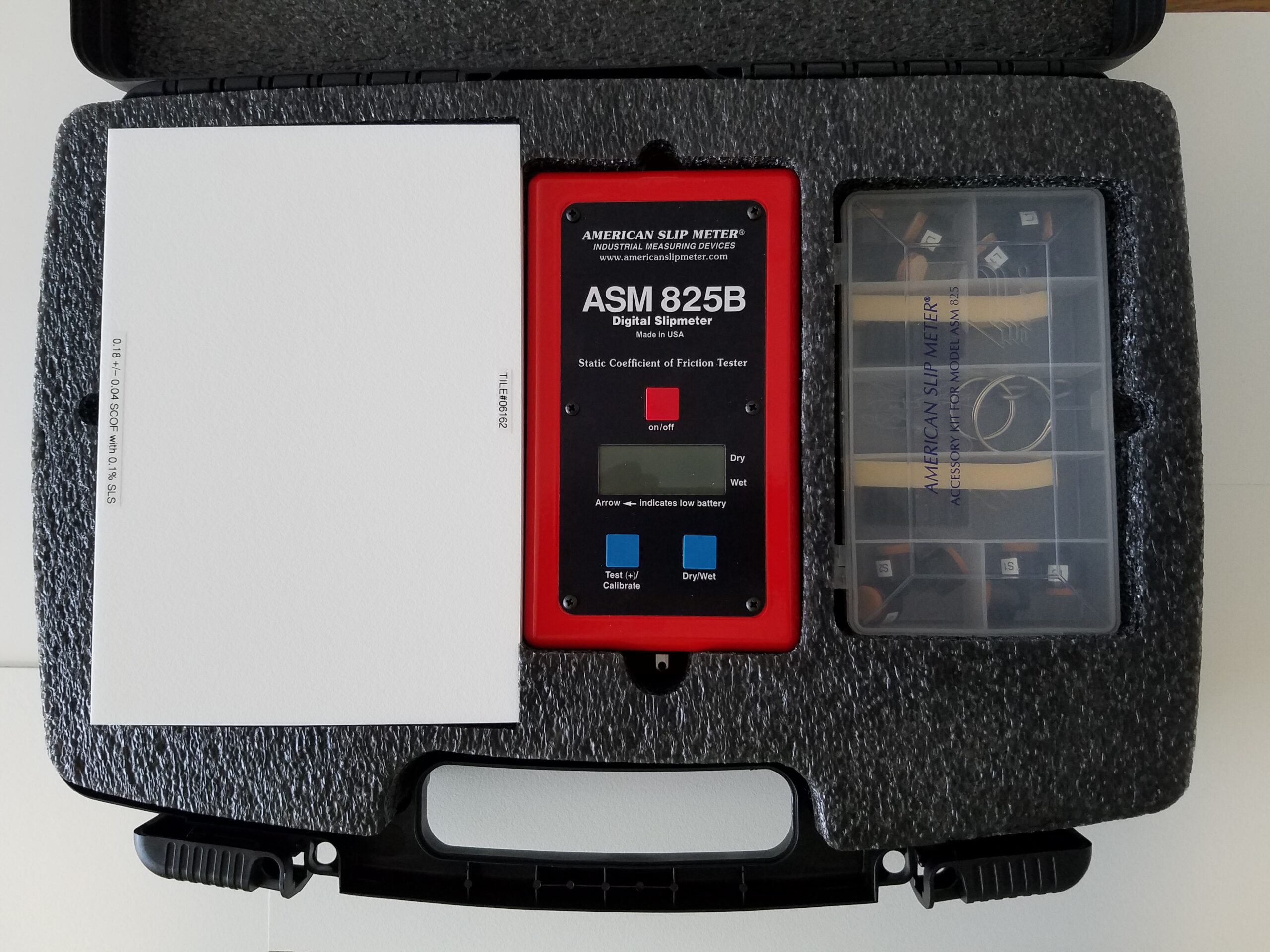

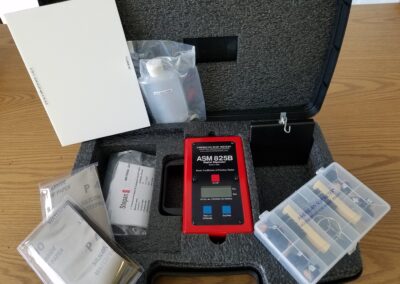

Complete Kit Contents
1 – ASM Slip Meter
1 – Carrying Case
1 – Instruction/Info Book
1 – Safety Log Work Sheet
1 – Accessory Container

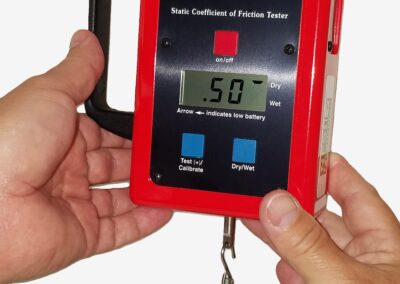

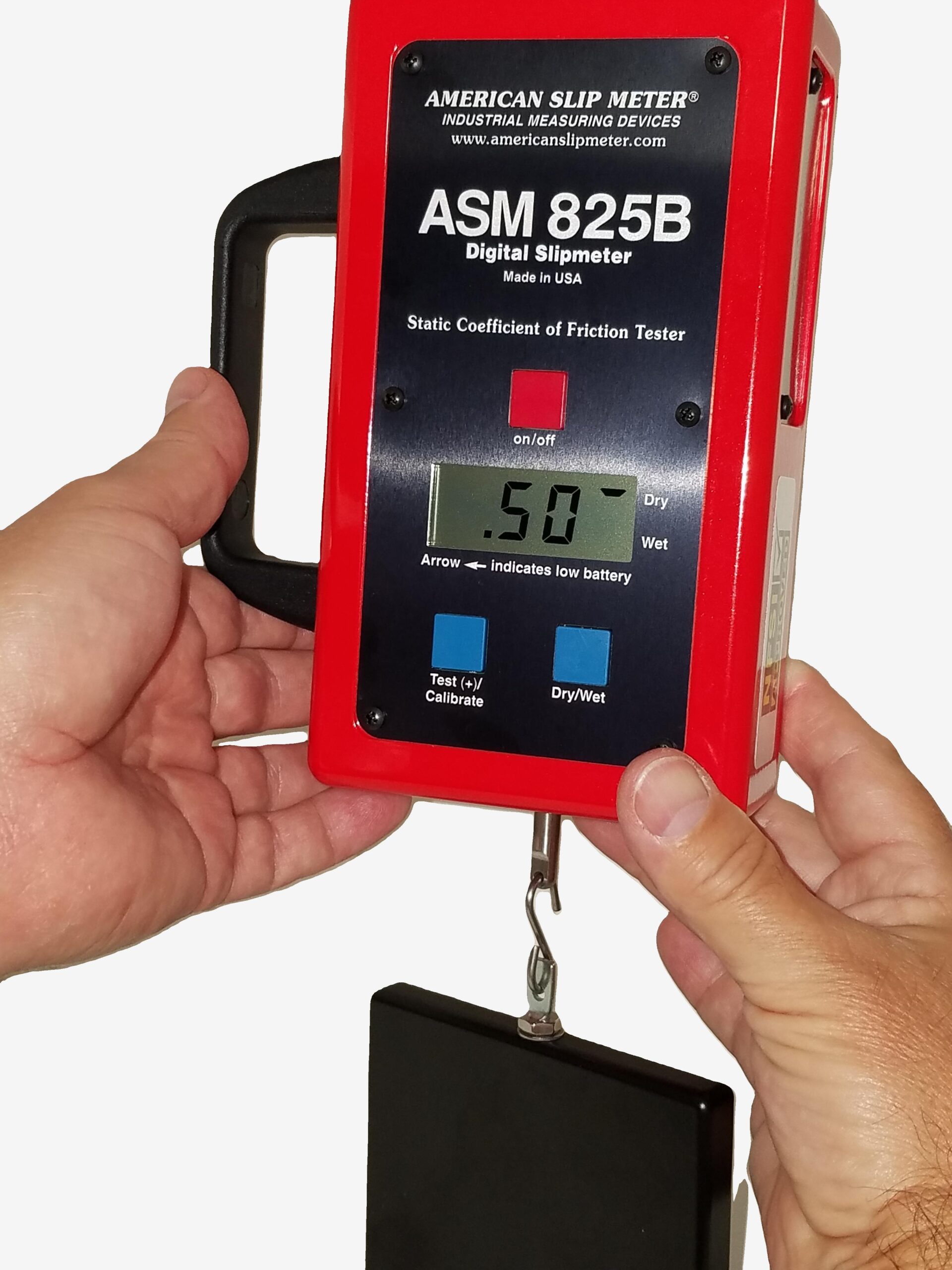

1 – Calibration Weight
2 – Control/Activator Lines
1 – Sensor Cleaning Brush
1 – SLS applicator brush

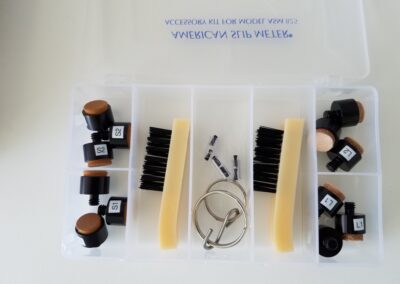

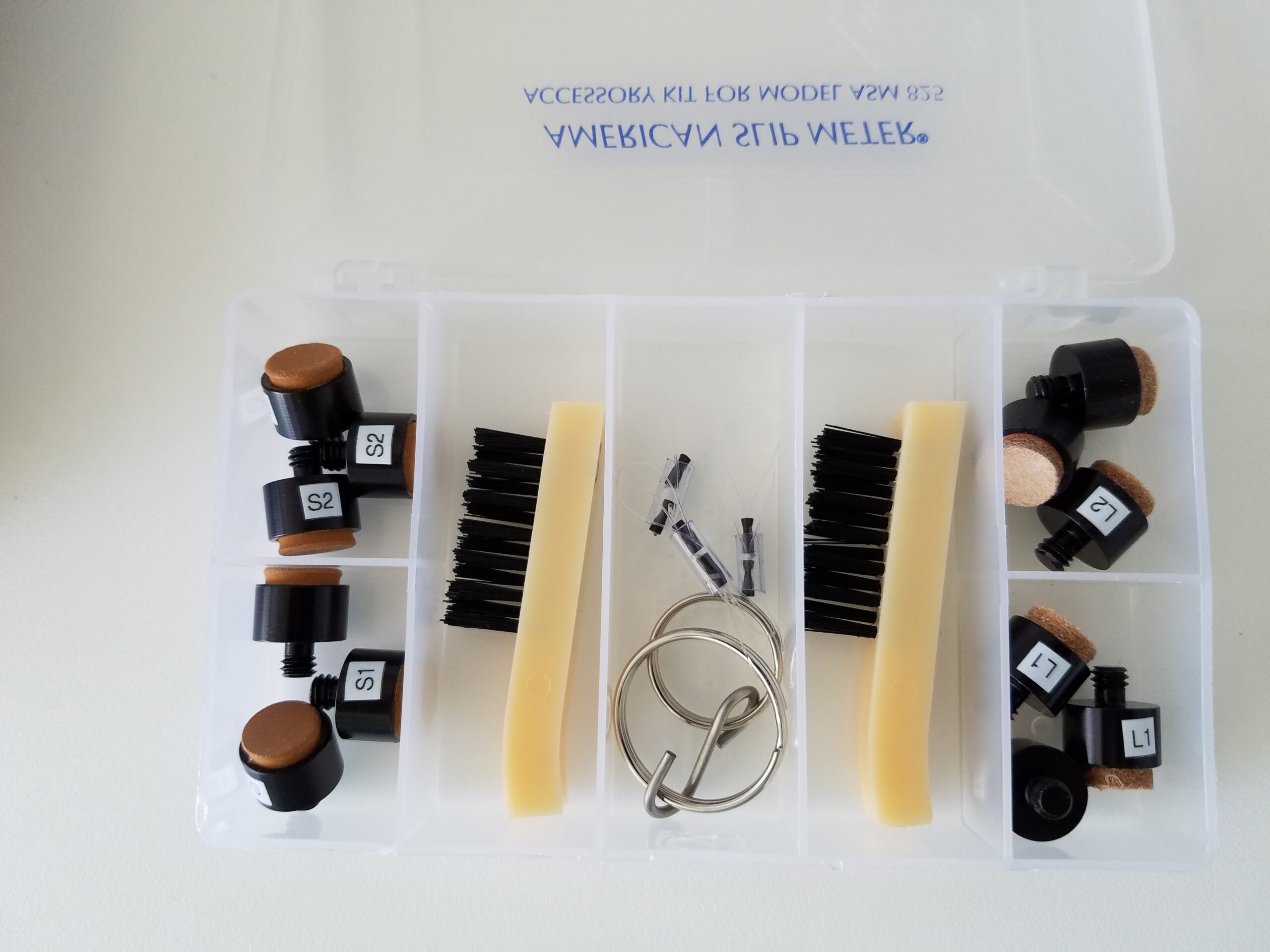

12 – Sensor Retainers (2 sets SBR, 2 sets Leather)
2 – Sheets of 400 Grit Wet/Dry Silicon Carbide
paper (1 for SBR and 1 for Leather)
1- Reference surface
Apparatus
Horizontal Dynamometer Pull Meter
Serial No
Engraved in Meter
Weight
4.76 Lbs. With Sensors Attached
7.38 Lbs. Complete Kit/Carrying Case
Reference
Sensor and Preparation-ANSI/NFSI B101.1, B101.3, ASTM D2047
Apparatus Use-ANSI/NFSI B101.1, B101.3
Test Procedures-ANSI/NFSI B101.1, B101.3, ASTM D2047
Terminology-ANSI/NFSI B101.0, ANSI/NFSI B101.1, B101.3 ASTM D2047,F1646
